US 6,499,268 B2
Reinforcing structures
Peter James,
2, Redd Landes, Shirenewton, Chepstow,
Gwent (United Kingdom)
Assigned to Hilti Aktiengesellschaft,
Schaan (Liechtenstein)
Filed on 27-Apr-2001, as Appl. No. Hilti Aktiengesellschaft,
Schaan (Liechtenstein)
Int. Cl.7E04C 5/00
U.S. Cl. 52-698
24 Claims
US 6,499,268 B2
Reinforcing structures
Peter James,
2, Redd Landes, Shirenewton, Chepstow,
Gwent (United Kingdom)
Filed on Apr. 27, 2001, as Appl. No. 9/842,784.
Claims priority of application No. 102475 (GB), filed on Apr. 28, 2000;
and application No. 102483 (GB), filed on Apr. 28, 2000.
Prior Publication US 2001/0034997 A1, Nov. 01, 2001
Int. Cl.7E04C 5/00
U.S. Cl. 528212;698
24 Claims

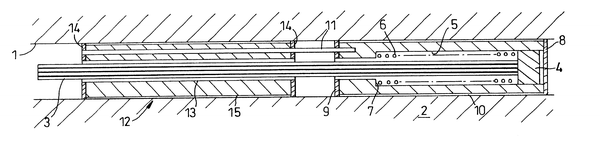

1. A method of reinforcing a structure comprising:
drilling into the structure,
inserting into the drilling an elongated reinforcement core carrying over part of its length a permeable fabric sleeve, injecting
cementitious grout into the sleeve to expand said sleeve against the wall of the drilling, some grout seeping through to bond
to said wall and thereby locally securing said core, and
providing and anchoring by anchoring the reinforcing core at a zone distinct and separate from the grouted sleeve to complete
a reinforcing assembly.
