US 6,499,202 B1
Quick-strip stretcher for tubular fabric
Renzo Milanese,
Marano Ticino (Italy);
and Giancarlo Ferraro,
Somma Lombardo (Italy)
Assigned to FERRARO S.p.A.,
Lonate Pozzolo (Italy)
Filed on 25-Jan-2001, as Appl. No. FERRARO S.p.A.,
Lonate Pozzolo (Italy)
Int. Cl.7D06C 5/00
US 6,499,202 B1
Quick-strip stretcher for tubular fabric
Renzo Milanese,
Marano Ticino (Italy);
and Giancarlo Ferraro,
Somma Lombardo (Italy)
Assigned to FERRARO S.p.A.,
Lonate Pozzolo (Italy)
Appl. No. 9/830,661PCT Filed Oct. 28, 1999, PCT No. PCT/IT99/00345§ 371(c)(1), (2), (4) Date Apr. 26, 2001, PCT Pub. No. WO00/26460, PCT Pub. Date May 11, 2000.
Claims priority of application No. MI98A2372 (IT), filed on Nov. 04, 1998.
Int. Cl.7D06C 5/00
U.S. Cl. 268212;80
6 Claims

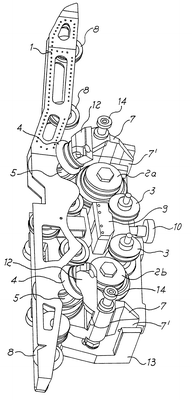

1. A stretcher comprising: two stretcher arms (1), said stretcher arms being provided with idle shaped rings (5), driving wheels (2a, 2b), and two pairs of inclined wheels (4, 48242;) in correspondence with said shaped rings (5), characterised in that said inclined wheels (4, 48242;) are respectively mounted on two plates (12, 13) that are adjacent to said arms (1) and detachably interconnected to each other with the possibility of disengaging said arms (1) from the plates (12, 13).
