US 6,499,255 B1
Panels of controllable radiation transmissivity
Shaul Givoni,
Upper Galilee (Israel)
Assigned to Dan-Pal,
Upper Galilee (Israel)
Filed on 12-Dec-2000, as Appl. No. Dan-Pal,
Upper Galilee (Israel)
Int. Cl.7E06B 7/096
U.S. Cl. 49-82.1
31 Claims
US 6,499,255 B1
Panels of controllable radiation transmissivity
Shaul Givoni,
Upper Galilee (Israel)
Assigned to Dan-Pal,
Upper Galilee (Israel)
Appl. No. 9/719,676PCT Filed Jun. 15, 1999, PCT No. PCT/IL99/00326PCT Pub. No. WO99/66149, PCT Pub. Date Dec. 23, 1999.
Claims priority of application No. 124949 (IL), filed on Jun. 15, 1998.
Int. Cl.7E06B 7/096
U.S. Cl. 498212;82.1
31 Claims

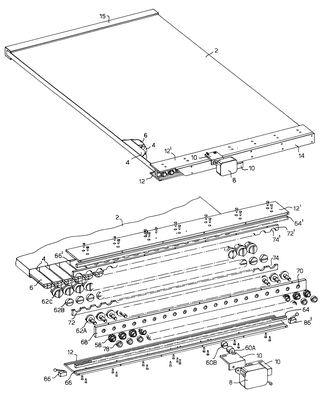

1. A panel of controllable radiation transmissivity, comprising:
a plurality of rotatably mounted radiation-blocking members, each of said members having at least one portion which is substantially
opaque, and
means for rotating said radiation-blocking members, said radiation-blocking members, when rotated, being adapted in at least
one angular position to substantially block the passage of radiation through said panel, and in a plurality of other, selectable,
angular positions, to provide a plurality of differing radiation transmissivities,
characterized by a plurality of substantially transparent tubular cells, said radiation-blocking members being mounted in
at least some of said tubular cells, and
means for rotating said radiation-blocking members inside said tubular cells.
