US 6,499,275 B1
Method and system for forming strings of pocketed coil springs
Roland Graf,
St. Gallen (Switzerland);
Niels S. Mossbeck,
Carthage, Mich. (US);
and Thomas J. Wells,
Carthage, Mich. (US)
Assigned to Spuhl AG St. Gallen,
Wittenbach (Switzerland)
Filed on 16-Jun-2000, as Appl. No. Spuhl AG St. Gallen,
Wittenbach (Switzerland)
Int. Cl.7B65B 63/02
U.S. Cl. 53-436
27 Claims
US 6,499,275 B1
Method and system for forming strings of pocketed coil springs
Roland Graf,
St. Gallen (Switzerland);
Niels S. Mossbeck,
Carthage, Mich. (US);
and Thomas J. Wells,
Carthage, Mich. (US)
Assigned to Spuhl AG St. Gallen,
Wittenbach (Switzerland)
Filed on Jun. 16, 2000, as Appl. No. 9/595,755.
Application 09/595755 is a continuation in part of application No. 09/353483, filed on Jul. 13, 1999.
Application 09/353483 is a continuation in part of application No. 09/293221, filed on Apr. 16, 1999.
Int. Cl.7B65B 63/02
U.S. Cl. 538212;436
27 Claims

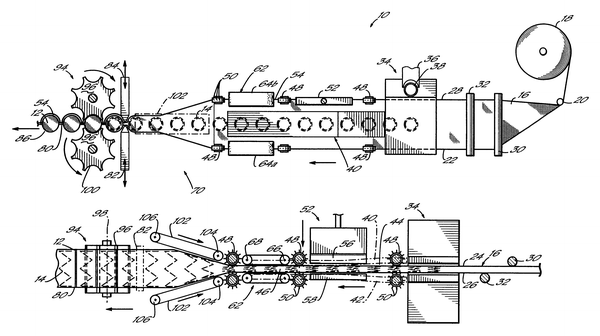

1. A method of forming a string of pocketed coil springs comprising the steps of:
feeding a supply of fabric having first and second generally parallel plies;
inserting a series of compressed springs between the first and second plies;
joining the first and second plies together to form a longitudinal seam proximate free edges of the first and second plies;
allowing the springs to at least partially expand to an extent permitted by the fabric so that a longitudinal axis of each
of the springs is generally perpendicular to the longitudinal seam of the fabric; and
forming a transverse seam in the fabric generally parallel to the longitudinal axis of the springs and between adjacent springs
to thereby enclose each of the springs within a fabric pocket;
wherein the transverse seam is formed after the springs are allowed to at least partially expand.
