US 6,499,243 B1
Firearm safety system
Raanan Herzog,
D.N. Menashe (Israel)
Assigned to SPID 2002 Corp.,
Woodmere, N.Y. (US)
Filed on 01-Mar-2002, as Appl. No. SPID 2002 Corp.,
Woodmere, N.Y. (US)
Int. Cl.7F41A 17/06
U.S. Cl. 42-70.07
9 Claims
US 6,499,243 B1
Firearm safety system
Raanan Herzog,
D.N. Menashe (Israel)
Assigned to SPID 2002 Corp.,
Woodmere, N.Y. (US)
Filed on Mar. 01, 2002, as Appl. No. 10/87,085.
Int. Cl.7F41A 17/06
U.S. Cl. 428212;70.07
9 Claims

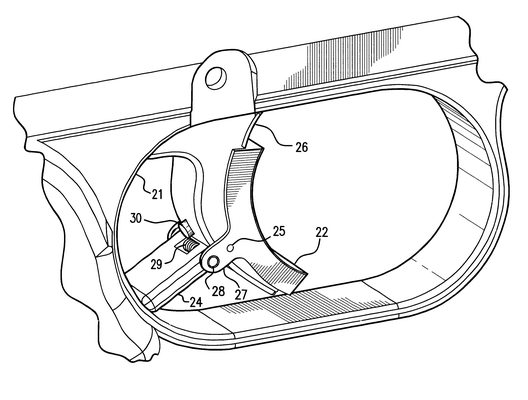

1. A firearm safety system, the firearm including a trigger, comprising:
a biometric sensor positioned on the forward facing portion of the firearm trigger so as to mate with the print portion of
a users finger when actuating the firearm, the sensor electrically coupled to an electro-mechanical latch;
an anchor element pivotally couple to the rearward facing portion of said firearm trigger, the anchor element preventing the
actuation of the firearm when in a first position, said joint is locked when the anchor is in said first position;
a first spring element coupled between the sensor and an anchor element forcing the anchor element to a retracted position;
and
an electro-mechanical latch, the latch maintaining the anchor element in an extended position to prevent the actuation of
the firearm, responding to a control signal from the sensor so as to allow the anchor element to move to the retracted position
and allow for the actuation of the firearm.
