US 6,499,263 B1
Decorative window assembly
Ruth Naomi Johnson,
412 E. 120th St.,
New York, N.Y. 10035 (US)
Assigned to Frank Novak & Sons, Inc.,
Cleveland, Ohio (US)
Filed on 23-Mar-2001, as Appl. No. Frank Novak & Sons, Inc.,
Cleveland, Ohio (US)
Int. Cl.7E06B 7/00
U.S. Cl. 52-311.1
6 Claims
US 6,499,263 B1
Decorative window assembly
Ruth Naomi Johnson,
412 E. 120th St.,
New York, N.Y. 10035 (US)
Filed on Mar. 23, 2001, as Appl. No. 9/815,705.
Int. Cl.7E06B 7/00
U.S. Cl. 528212;311.1
6 Claims

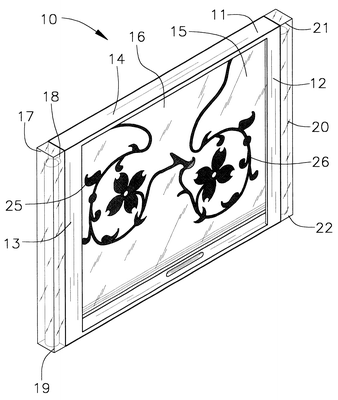

6. A decorative window assembly comprising:
a window frame;
a window panel being securely mounted to said window frame;
tubular reservoir members being securely attached to said window frame and being adapted to store anti-freeze colored liquid,
said tubular reservoir members being vertically disposed to either side of said window frame;
decorative conduit members being disposed upon said window panel and being connected to said tubular reservoir members with
tubular connectors, said decorative conduit members being arranged in pattern designs including flowers, geometrical shapes,
and any child-oriented themes, said decorative conduit members being made of vinyl material and being securely attached upon
a front side of said window panel, said tubular connectors being securely disposed at top corners of said window panel and
being extended through said window frame and into said tubular reservoir members near top ends thereof, said tubular connectors
being securely attached to an upper cross member of said window frame; and
pump members being connected to said tubular reservoir members for urging the anti-freeze colored liquid into said decorative
conduit members and for drawing the anti-freeze colored liquid from said decorative conduit members, said pump members being
generally piston/plunger members being disposed in elongate side members of said window frame and being connected to said
tubular reservoir members and being adapted to urge the anti-freeze colored liquid from said tubular reservoir members into
said decorative conduit members upon said window panel being in a lowered position and also being adapted to draw the anti-freeze
colored liquid from said decorative conduit members into said tubular reservoir members upon said window panel being in a
lowered position.
