US 6,499,185 B1
Apparatus for holding a door open
David Moyer,
Coatesville, Pa. (US);
Todd Beaton,
Blandon, Pa. (US);
and Ricky Loose,
Stevens, Pa. (US)
Assigned to Dorma Door Controls, Inc,
Reamstown, Pa. (US)
Filed on 30-Oct-2000, as Appl. No. Dorma Door Controls, Inc,
Reamstown, Pa. (US)
Int. Cl.7E05F 5/02
US 6,499,185 B1
Apparatus for holding a door open
David Moyer,
Coatesville, Pa. (US);
Todd Beaton,
Blandon, Pa. (US);
and Ricky Loose,
Stevens, Pa. (US)
Assigned to Dorma Door Controls, Inc,
Reamstown, Pa. (US)
Filed on Oct. 30, 2000, as Appl. No. 9/699,735.
Int. Cl.7E05F 5/02
U.S. Cl. 168212;51
11 Claims

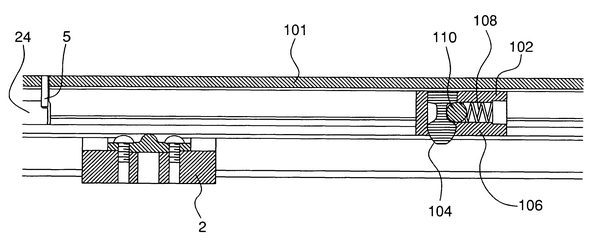

1. A door hold-open device comprising:
a. a track;
b. a slide block catch feature slidably mounted for longitudinal movement in the track;
c. a stop assembly comprising:
i. a stop assembly catch coupled to the track and adapted to engage the slide block catch feature wherein the stop assembly
catch is moveable in a direction different than the longitudinal direction,
ii. a resilient member that applies a force to the stop assembly catch to urge the stop assembly catch into a position where
the stop assembly catch engages the slide block catch feature when the slide block catch feature is adjacent to the stop assembly
catch;
d. a linear actuator having a first position and a second position, wherein the linear actuator applies a first force to the
resilient member in the first position and a second different force to the resilient member in the second position;
wherein said slide block catch feature is free to travel beyond said stop assembly catch along at least a substantial portion
of any remaining length of said track, thus allowing a door to open beyond said stop assembly.
