US 6,499,161 B1 Adjustable bed with vibrators Robert G. Godette,
Midway City, Calif. (US) Assigned to L&P Property Management Company,
South Gate, Calif. (US) Filed on 07-Sep-2000, as Appl. No. L&P Property Management Company,
South Gate, Calif. (US) Int. Cl.7A61G 7/015
U.S. Cl. 5-618
18 Claims
US 6,499,161 B1
Adjustable bed with vibrators
Robert G. Godette,
Midway City, Calif. (US)
Assigned to L&P Property Management Company,
South Gate, Calif. (US)
Filed on Sep. 07, 2000, as Appl. No. 9/657,113.
Int. Cl.7A61G 7/015
U.S. Cl. 58212;618
18 Claims

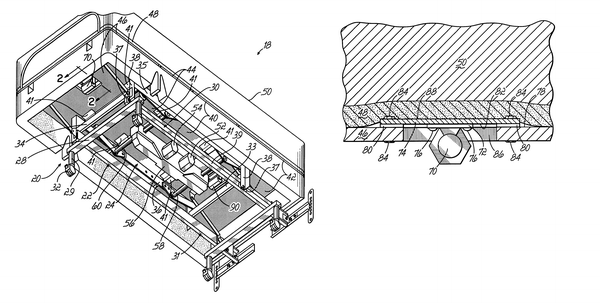

1. An adjustable bed comprising:
a bed frame;
a center support section supported by the bed frame;
a second support section having one end pivotally attached to one end of the center support section, the second support section
having an upper side and a lower side;
a resonator board nonrigidly mounted to the upper side of the second support section;
a neoprene spacer mounted between the upper side of the second support section and the resonator board; and
a massage motor mounted to the resonator board.
